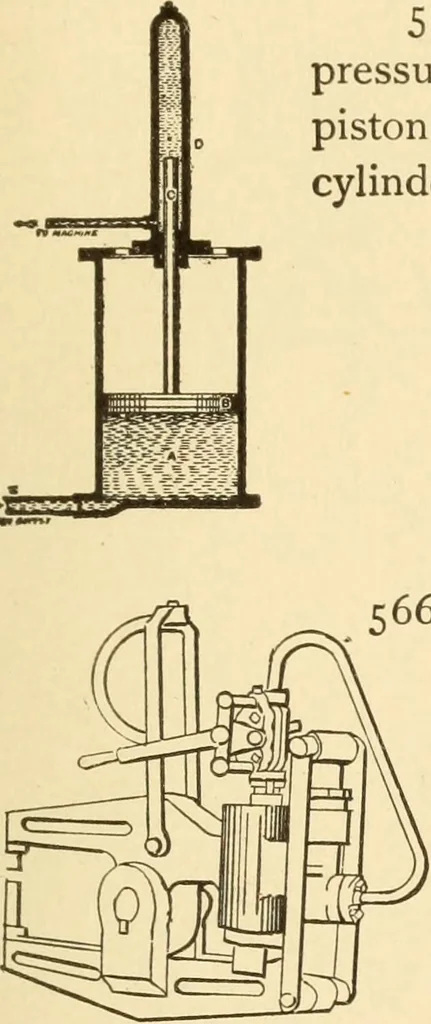

565. HYDROSTATIC PRESS.—There aremany modifications of this principle for pressesand elevator lifts. The gross pressure of theram is as the areas of the ram and pump pistonsmultiplied by the pounds pressure on the pumppiston. HYDRAULIC POWER AND DEVICES. 153 … 566. HYDRAULIC INTENSIFIER. —Highpressure obtained from low pressure by differentialpistons. A, Low-pressure cylinder; D, high-pressurecylinder and plunger. 566 a. PORTABLE HYDRAULIC RIVETER. —-An inverted hydraulic ram is operated bythe small pump and lever attached to the topof the ram. The…
