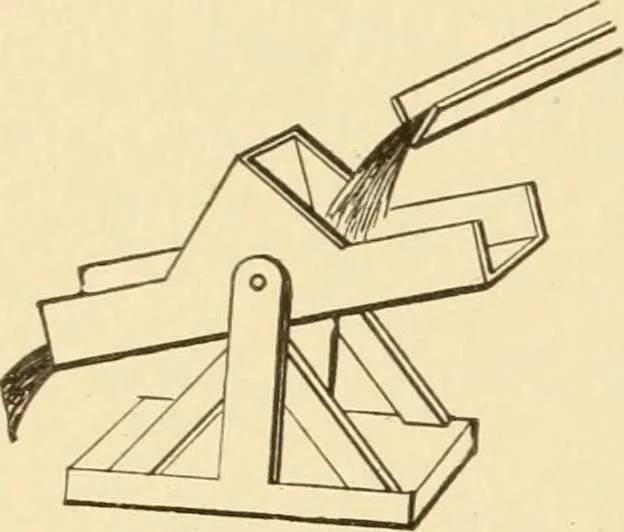

595. MULTIPLE BALL VALVE.—The cone-valve seat is in two parts ; the cover or cage is heldin place by the screw in the cap. 596. MULTIPLE RING VALVE,enlarged valve area with small lift. for 597. DOUBLErBEAT PUMP VALVE, Cor- nish model. The upper seat is supported by a cross-bar, in which is fixed… … 599. VIBRATING MOTION of a troughdischarging water alternately in two direc-tions. The trough is balanced below itscentre of gravity, and has a partition at themiddle. The water falls on one side of thepartition until the trough is overbalanced,when it turns and discharges the water. The partition…
