Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 29

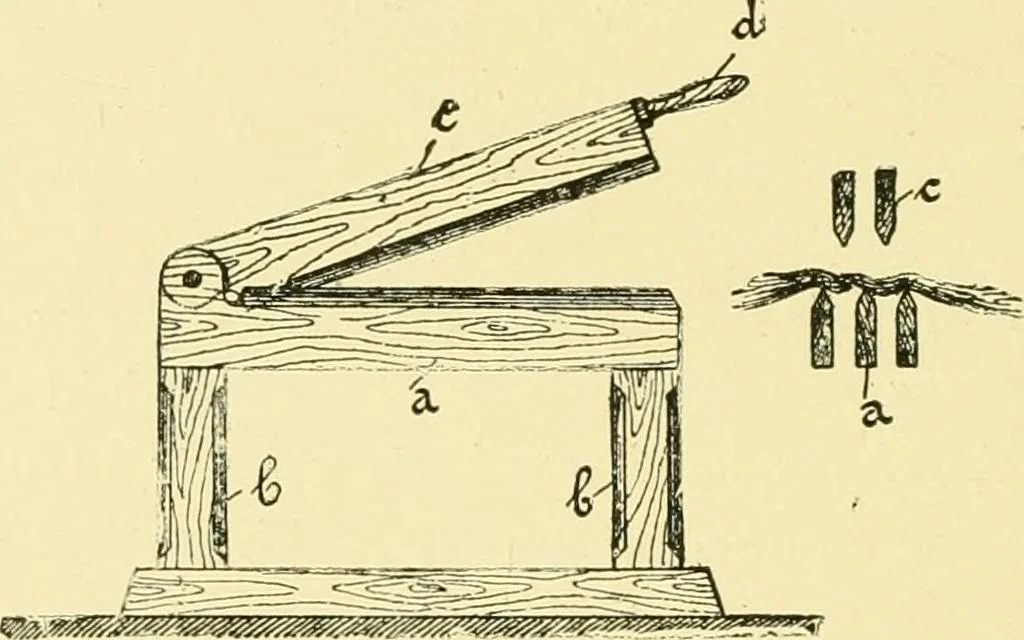

reaker. (6) The breaking machine. (c) The stripping machine. (a) The Hand Breaker.This simple tool, which is used where flax is prepared athome or in small works, is shown in Figs. 6 and 7. It consistsof three knives, a, which, together with the solid supports, b,form the block, and of the beater,… … Fig. 6.—Front View of Hand Breaker. Fig. 7.—Section through Blockand Beater. whilst the beater, c, is being forcibly moved up and down withthe right hand. (b) The Breaking Machine. Fig. 8 depicts a flax-breaking machine fitted with fivepairs of grooved rollers, a, b, c, d, e. The lower rollers…
