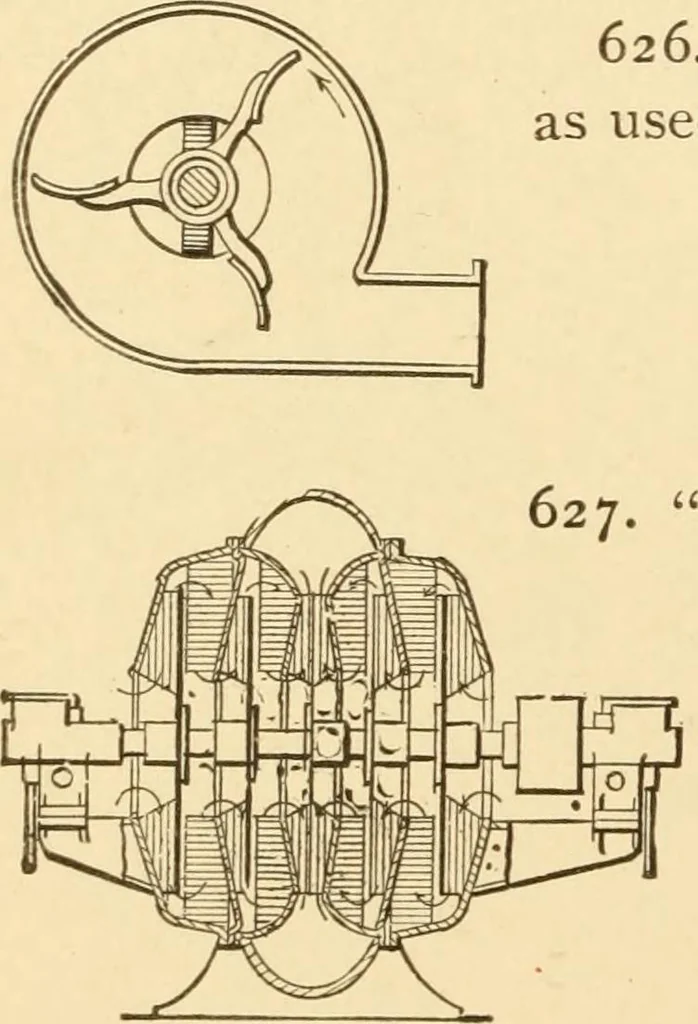

625. FOOT BELLOWS, for a blowpipe. Aspring raises the top of the bellows. The rubberbag is confined to the netting to prevent burst-ing. The step at the left is for the foot. … FAN BLOWER.—An ordinary model as used for blowing forge fires HODGES COMPOUND BLOWER.— The action is a triple effect. The air isdrawn in at each side of the blower andthrown out at increasing pressure succes-sively by the fans on each side, and returnedsuccessively by the stationary partitions,with…
