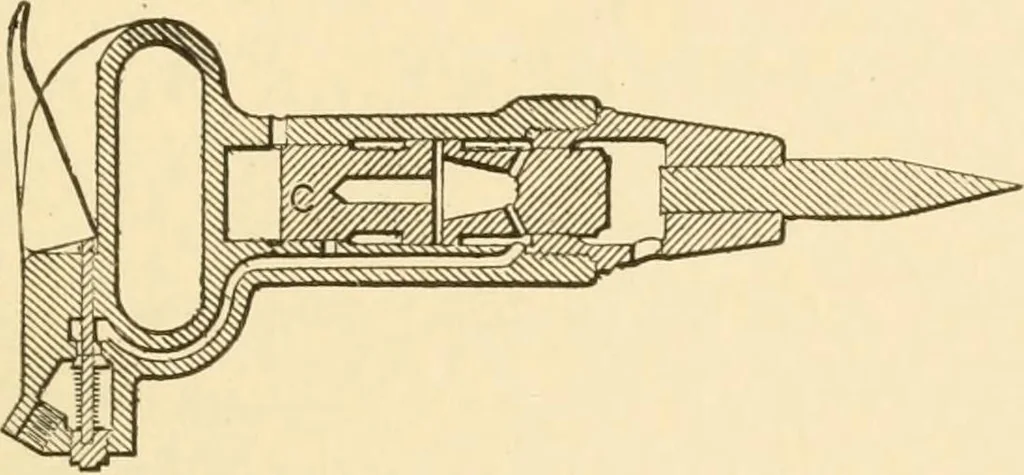

cylinder, C, on the tool socket, H.by the differential piston areas,this operation. DUPLEX PNEUMATIC RIVETER. — The striking piston. A, is en-cased in a striking cylinder, C,so that the tool, T, receives ablow alternately from the ham-mer piston, A, and from theThe method of operation is shownThe… … 672. PNEUMATIC HAM-MER.—Constructed on simi-lar lines with No. 673, withthe addition of a counter-balance piston, C, which, by-its reaction and cushion, re- lieves the body of the tool and the hand from excessive jar.
