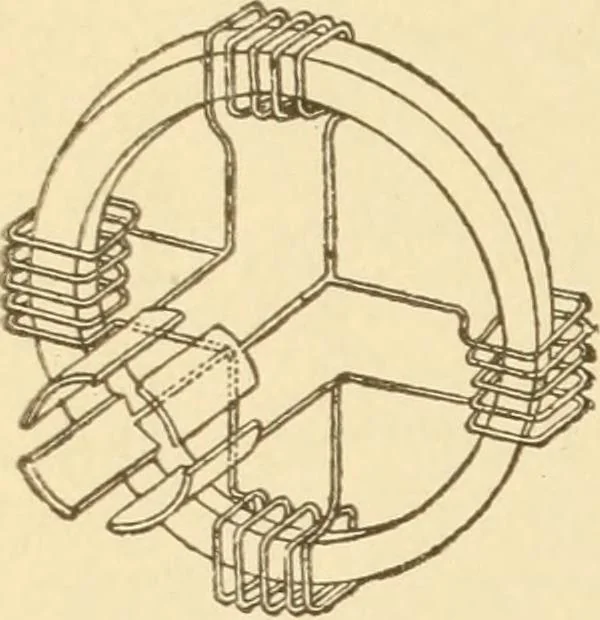

706. ELECTRIC GENERATOR CONSTRUCTION. —Shunt winding, in which the field winding is in parallelwith the armature winding and connected with the circuitat the brush holders. A, Armature; C, commutator; hand h\ brushes; a, r, field connections ; S, field winding. 39° ELECTRIC POWER AND CONSTRUCTION. … 707. FOUR-POLE RING ARMATURE,showing intermediate connections with thecommutator bars from a continuous windingor closed coil. 708.
