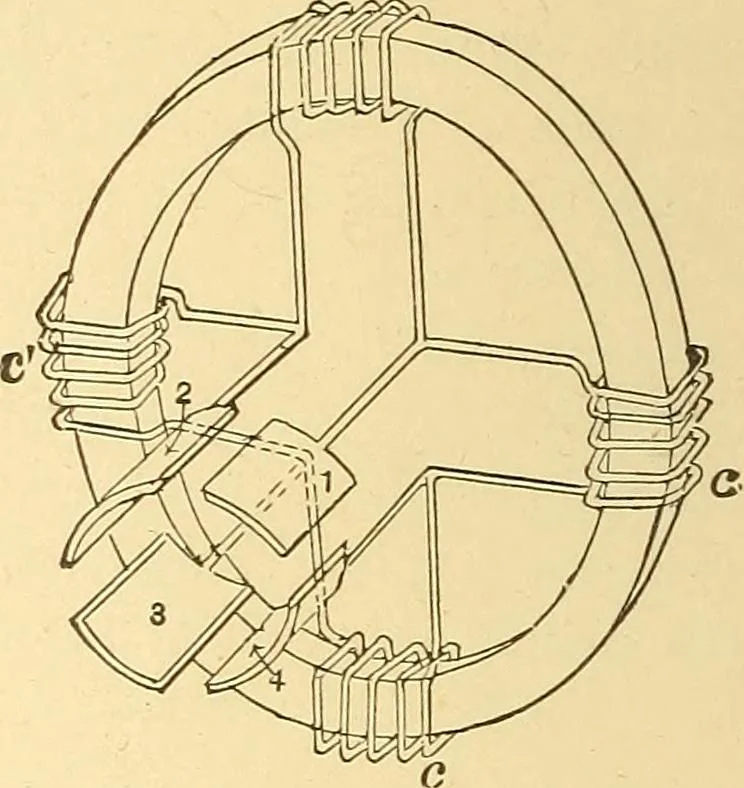

Fig. 22. Pole-Armature.the coils and their connection to the commutatorsegments is seen in Fig. 22. Armature, Quantity An old term for an armature wound with but a few coilsof comparatively low resistance. Armature, Radial A term some-times used instead of pole-armature. (SeeArmature, Pole)… … Fig. 23. Ring-Armature. A ring-armature is shown in Fig. 23, togetherwith the disposition of the coils and their connec-tion to the segments of the commutator. Armature, Shuttle A variety of drum armature in which a single coil ofwire is wound in an H -shaped groove formedin a bobbin shaped core.…
