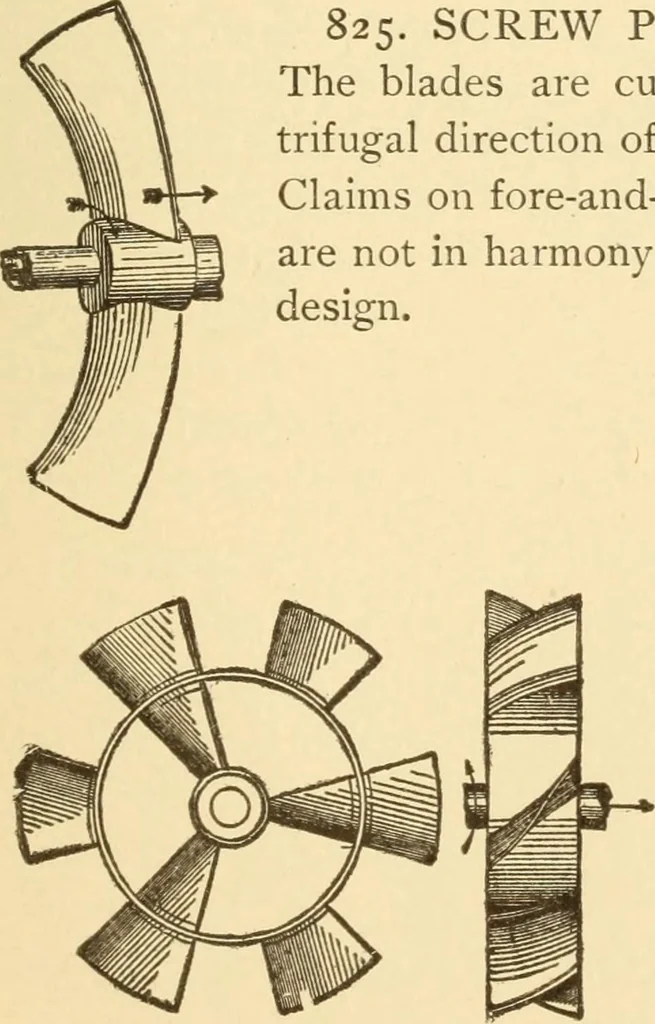

power of the wheel. 23. SCREW PROPELLER. Four blades,dinary form for heavy draft tugs and tow-boats. Or. 824. SCREW PROPELLER, Griffithmodel. The inclination of the blades ismade adjustable, and they are attached tca rim outside from the hub. 825. SCREW PROPELLER, « Hodgsons model. The blades are… … 826. SCREW PROPELLER,the Ericsson model. A rim con-necting all the blades, supposed tocounteract the centrifugal tendencyof the water. 827. Side view. 2l6 NAVIGATION AND ROADS.
