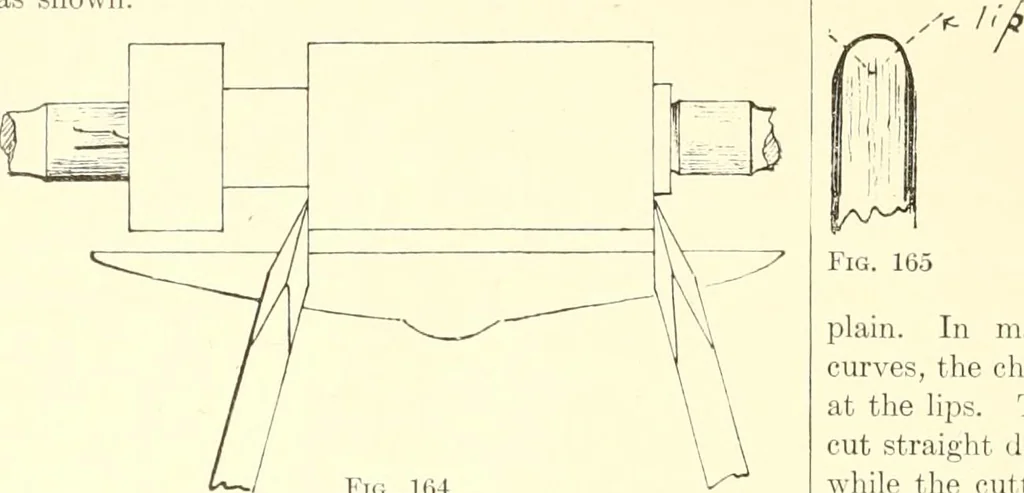

tool, and as the cut proceeds, the tool must be graduallydrawn toward you as at B, or the grind at x will scrapeand spoil the bead already made. Finish the quarter 84 circle with the tool well forward, as at C. The toolmust at all times be held at right angles to the wood,as shown. WOOD TURNING… … Fiii. 164 To cut square shoulders, cut with the acute point, andswing the tool to the right or left, until the grind is atright angles to the wood (Fig. 164). Small Gouge This cutting tool should be ground somewhat differ-ently from the large gouge, and sharpened so that the lips(Fig. 165)—two…
