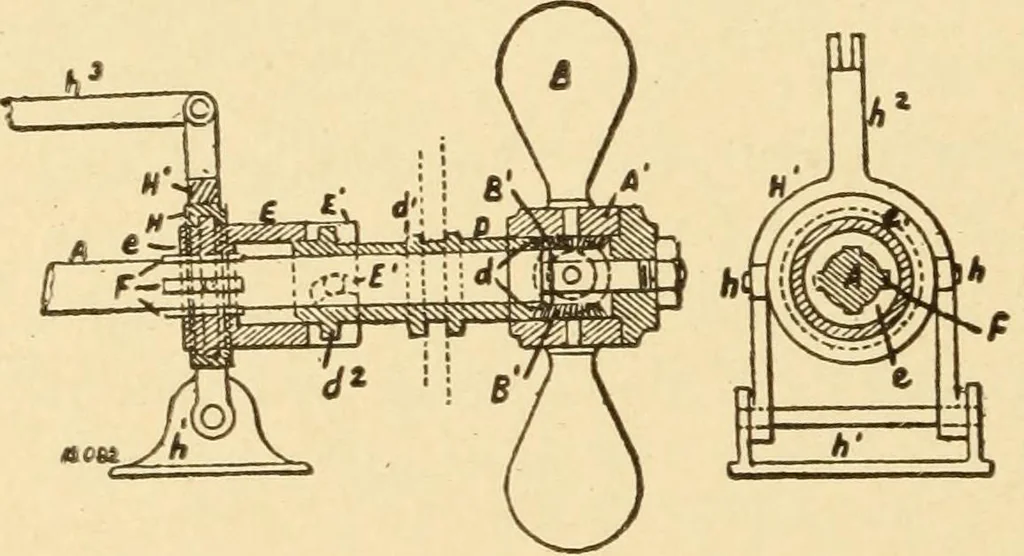

s fixed to the inner driv-ing shaft. A sleeve, withgear-cut end to fit the pinionteeth, revolves with the shaft. An inclined slot-sleeve E, moved by ayoke lever, gives a slight rotary motion to the geared sleeve by whichthe four blades are reversed. S^^. Section of shaft and reversing lever. 834.…
