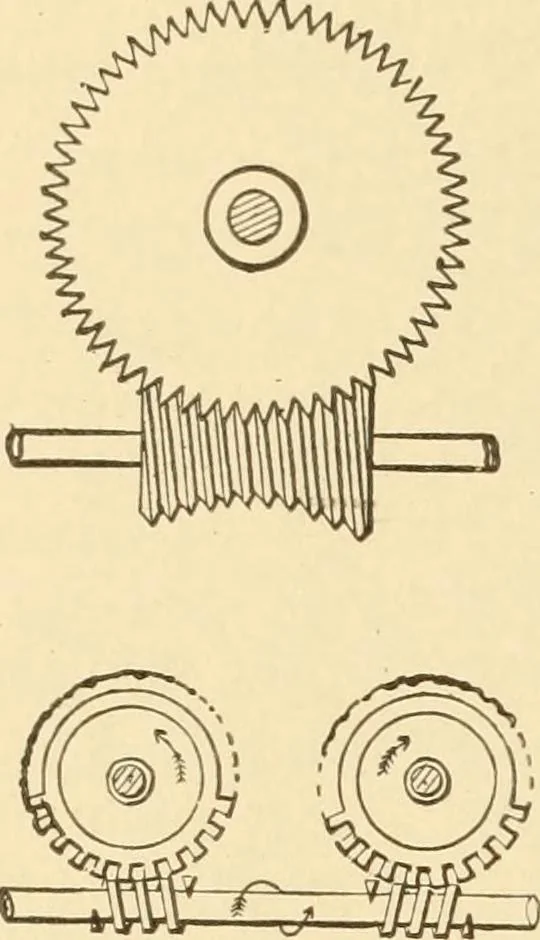

234 GEARING. … 910. SAW-TOOTH WORM GEAR.—By thesaw-tooth form of the teeth of both wheel andworm, and the concave pitch lines of the worm, alarge area of contact is given to the teeth. 911. RIGHT- AND LEFT-HAND WORMGEAR for feed rolls or drums.
