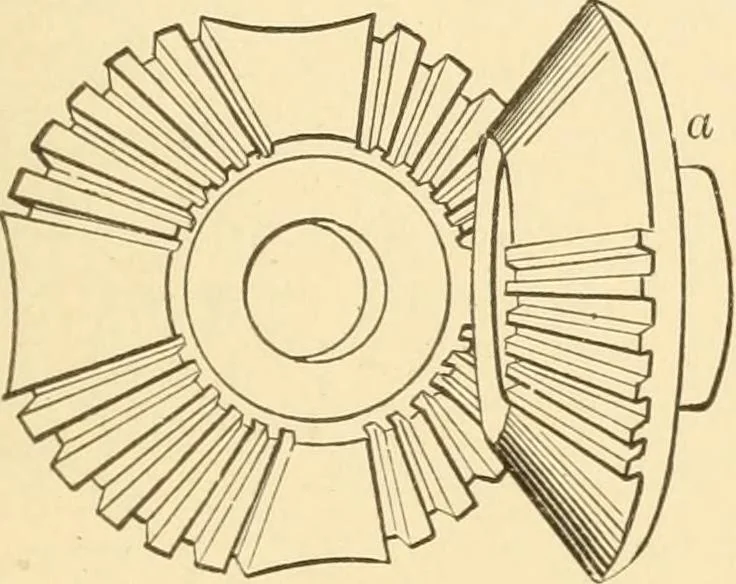

958. MITER INTERMITTENTGEARS.—The driver makes one revolu-tion to one-quarter of a revolution of thedriven gear. The blank part of the driv-ing gear is milled down to the pitch line,and runs in the corresponding concaveof the four-part driven gear. 959. INTERMITTENT ROTARY MOTION,from continuous…
