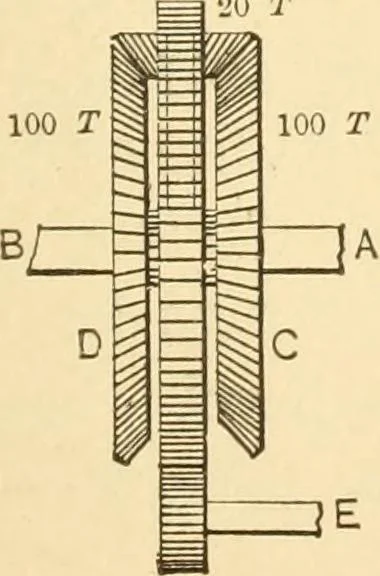

direction of the governing motion. … 971. CHANGE GEAR MOTION.—The shaftsA and B are disconnected, and carry a loose hub andspur wheel in which is pivoted the bevel pinion T.The bevel wheel C is fast on shaft A, and D is faston shaft B. Any motion given to the central spurgear either way by the pinion shaft E varies the speedof the…
