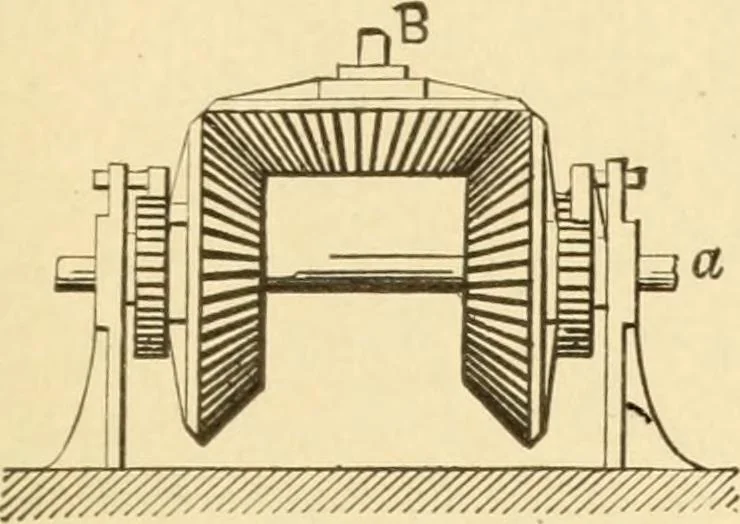

GEARING. 247 … 976. CONTINUOUS SHAFT MO-TION from an alternating driving shaftThe ratchets fixed to the bevel gears onthe shaft a are operated by pawls fixedto the shaft, the rocking of which re-volves the bevel gear and shaft B in onedirection.
