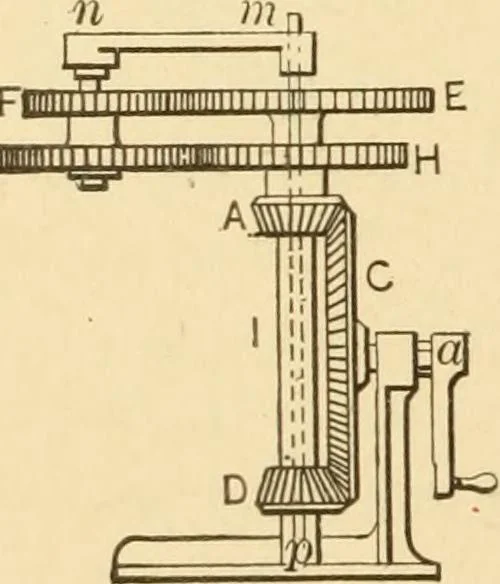

Gjms^s^m. … 984. HIGH-SPEED EPICYCLIC TRAIN.— Bevel gear C is the driver; iti / is a fixedshaft. Bevel pinion D and spur gear E are fixedon a hollow shaft. Bevel pinion A and spur gearH are fixed on a hollow shaft, revolving on thehollow shaft I. The arm ;;/;/ revolves freely onthe fixed shaft w p. The spur…
