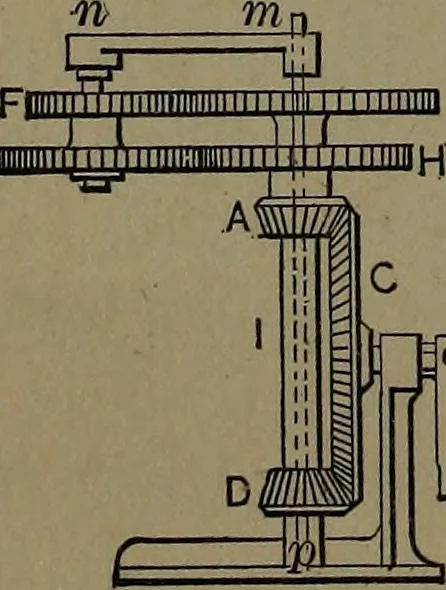

GUBHH mnmaE … 984. HIGH-SPEED EPICYCLIC TRAIN. — Bevel gear C is the driver; w / is a fixedshaft. Bevel pinion D and spur gear E are fixedon a hollow shaft. Bevel pinion A and spur gearH are fixed on a hollow shaft, revolving on thehollow shaft I. The arm m n revolves freely on^ the fixed shaft m p. The spur…
