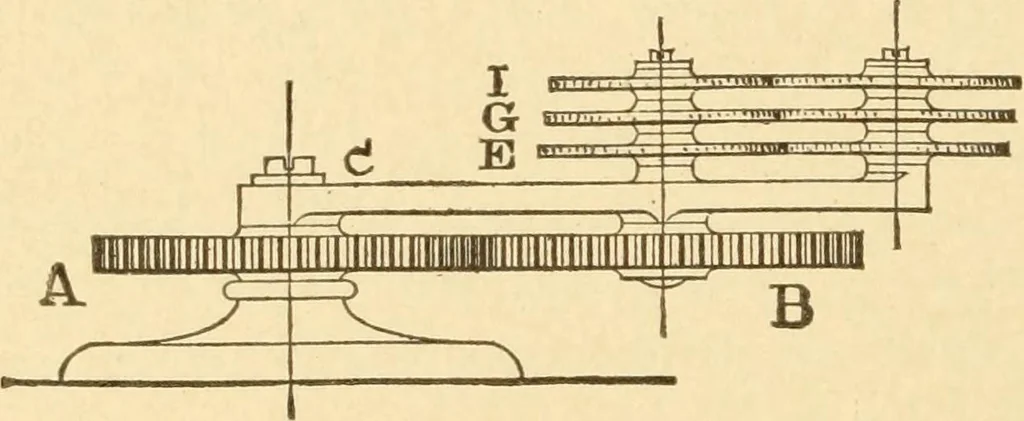

NICALPARADOX, a curious property of an epicy-clic train. A is a central fixed axle and geail-ilc W ^ D wheel, around which the arm C D revolves;M, a wide-gear wheel loose on a pivot set inthe arm CD; N, a pivot also set in the arm and carrying threegears with a differential number of teeth, say,… … B N GEARING 251
