Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 261

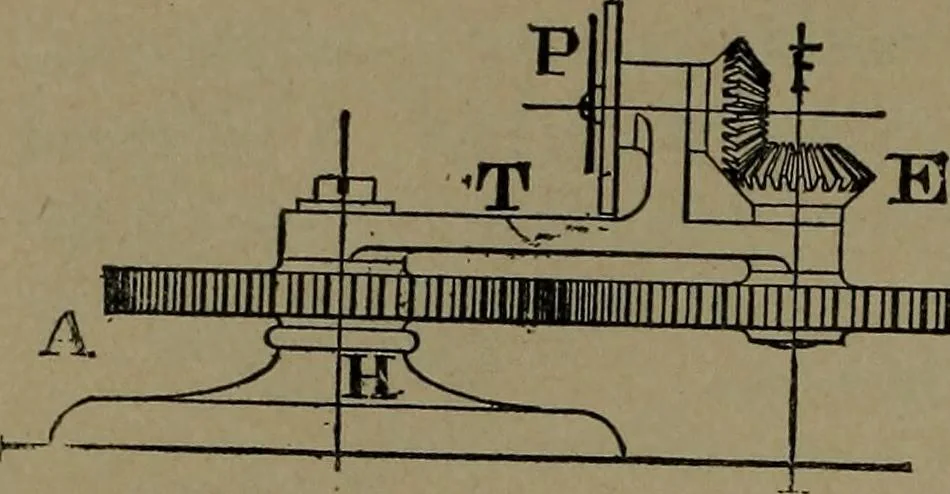

988. PLANETARY MOTION applied to anapple-paring machine. The gear F is fixed to thecrank shaft. The internal spur gear A is stationary.On turning the crank the pinion B rolls forward,carrying the arm T at half the velocity ofthe crank. The bevel gear A revolves withthe crank, driving the spindle K… … 989. PLANETARY GEAR TRAIN.—The arm T revolves around the fixed gear A, on the nnnmiTfllM stand H. The gear B and bevel •^gear E are fixed on a shaft and turn in one direction, giving a contrary motion to the bevel gear F and index hand P. p/ 990. PLANETARY GEARTRAIN. The arm T revolvesaround the…
Mechanical movements
