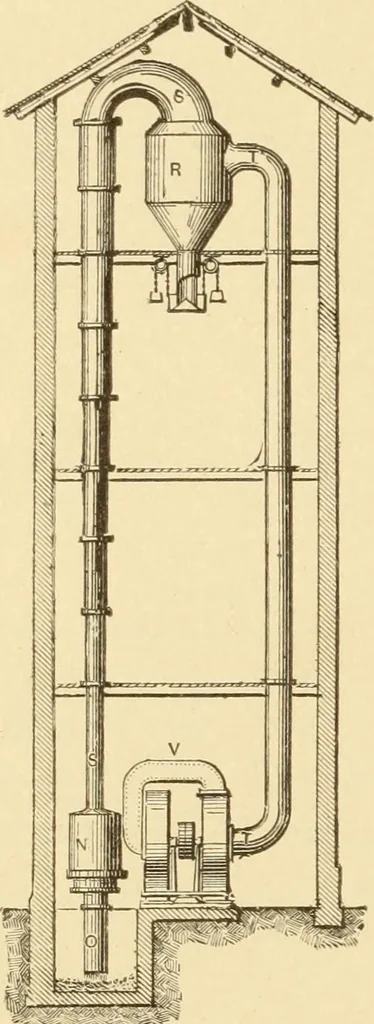

992d. CHANGEABLE MOTIONGEAR.—Two or more changes of motionby bevel gear may be made by moving apinion along a feathered shaft at an anglewith the change gear shaft. 2.S2 GEARING. … 992£7. PNEUMATIC GRAIN ELE-VATOR.—V is a compound suctionfan: T, pipe to receiver R; R, areceiver with a wire gauze screento allow dust to be separated from thegrain and carried off through the fan;S, lifting pipe of conical form; N,regulator with a rubber diaphragm toallow the foot nozzle O to…
