Heat energy and fuels: pyrometry, combustion, analysis of fuels and manufacture of charcoal, coke and fuel gases. Translated by Oskar Nagel (1908)
Jüptner von Jonstorff, Hanns, Freiherr, 1853- · New York McGraw · leaf 221

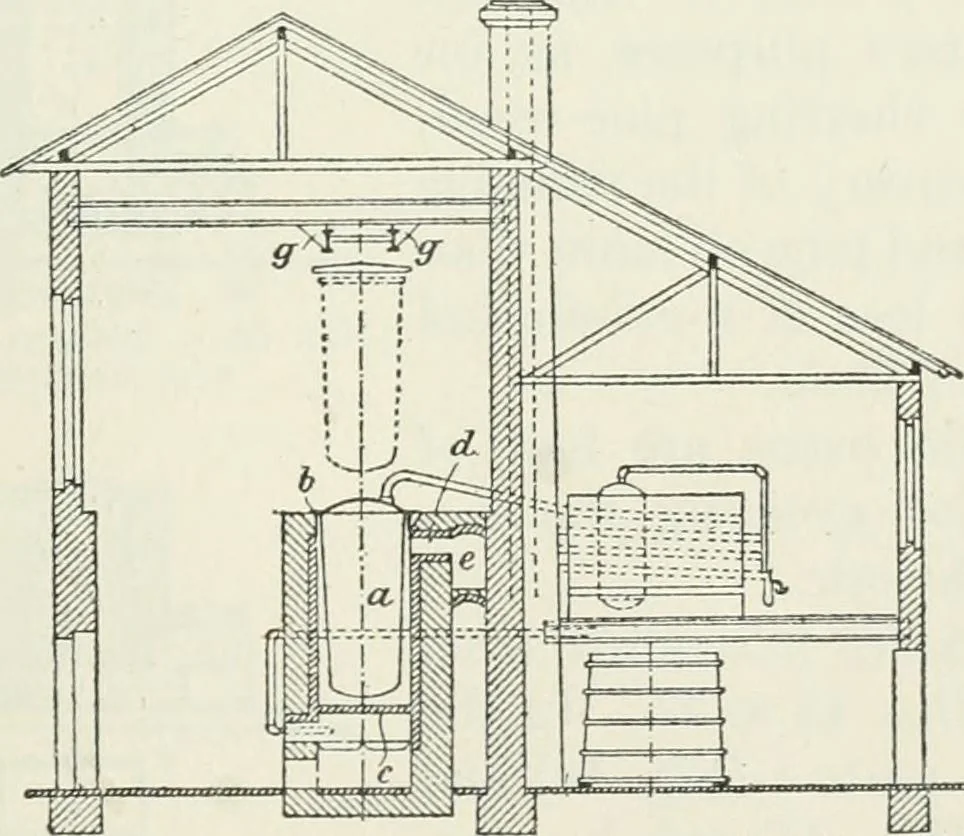

FiG. 53. — Longitudinal Section of a Modern Charring Plant with Vertical Retorts. ing the vertical shell. For quickly preheating the wood to 100degrees, steam is admitted at the bottom of the cyhnder. Thetar flows through a pipe arranged at the bottom, to a collecting … PiG. 54. —Cross-section of a Modern Charring Plant with Vertical Retorts. vessel, while the vapors leave through a pipe on the top, and goto a condensing apparatus, from which the condensed tar passesto the above-mentioned collecting vessel. The products of (lis- 212 HEAT EX ERG Y AXD FUEL…
Fuel · Heat
