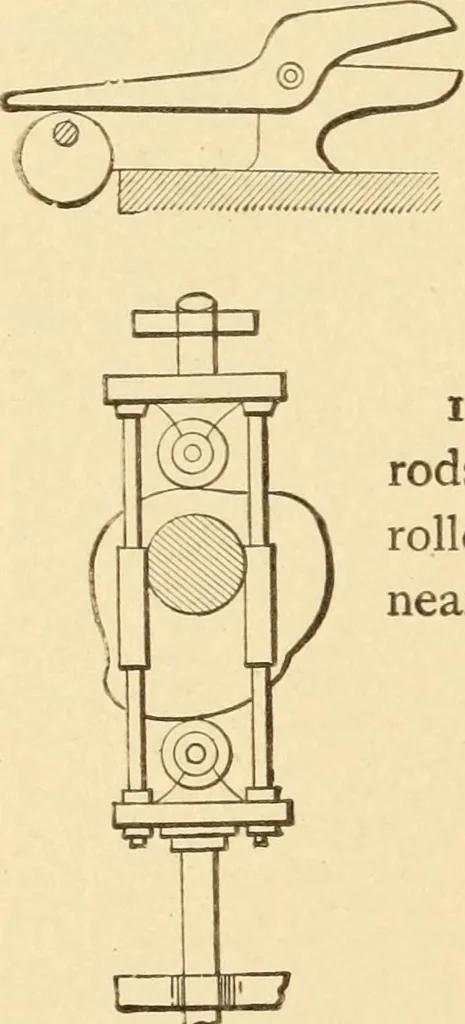

1091. CYLINDRICAL CAM, giving any re-quired special motions through a lever, roller,and connecting rod, according to the curves givento the cam. … 1092. CAM-OPERATED SHEARS.- Many modifications of this device are in use. 1093. IRREGULAR CAM MOTION to valverods. An irregular cam, acting between frictionrollers in a yoke frame. Positive irregular rectili-near motion. An old steam-engine valve gear.
