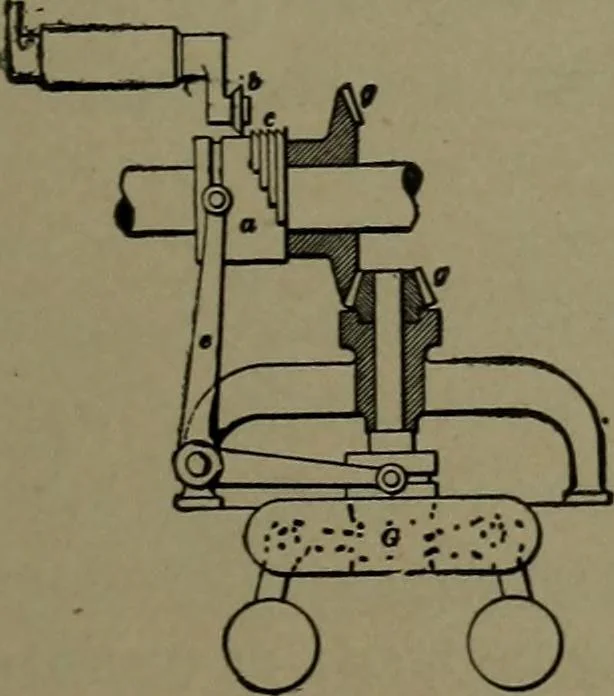

443. GOVERNOR AND VARIABLE CAMfor a gas engine. The centrifugal movementof the governor balls slides the sleeve on thegovernor shaft, and also the variable camsleeve, ^, on the driving shaft, by the bell-cranklever, e. The disc roller, b^ on an arm of a rockshaft, rolls upon one or the other cams…
Mechanical movements
