Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 283

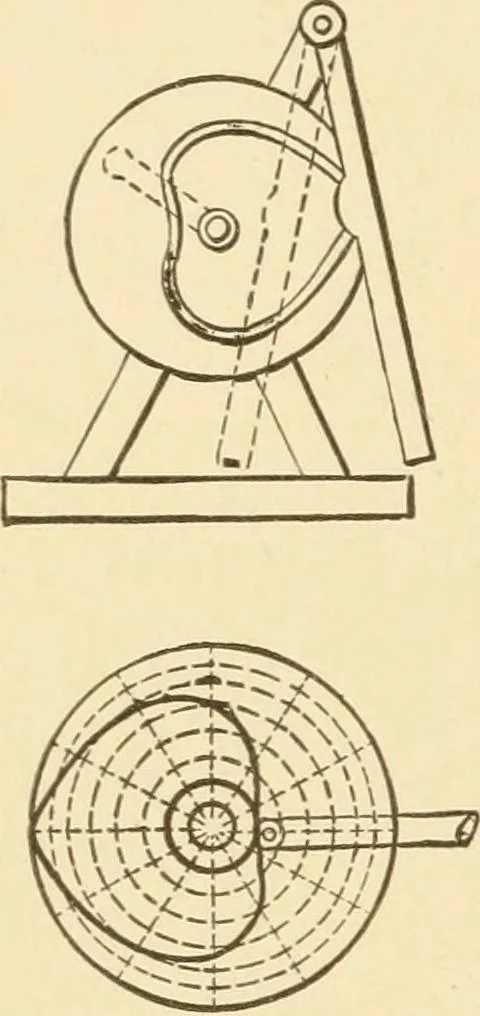

iioi. GROOVED HEART CAM.—The lay- out of a grooved cam may be made on the sameJ principles as No. 1103, only that the centre of theroller or pin and the central line of groove arethe measurements for the amount of motion. … 1102. HEART-SHAPED GROOVE in a face plate, vibrating a lever, produces an irregular swing-ing motion of the lever. II03. LAYING OUT A HEART CAM.— A circle is drawn on a radius equal to the required throw,plus the diameter of the roller. A series of con-centric circles and radii enables a measured…
Mechanical movements
