Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 291

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 291

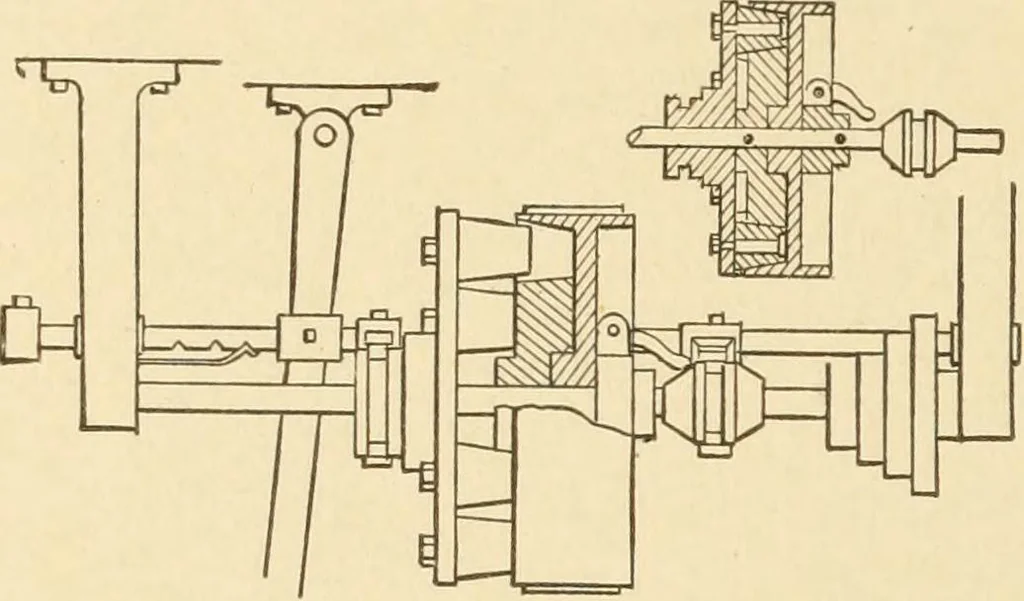

1145a. HYDRO - EXTRACTOR,showing method of beUing with ad-justable idler and cone pulleys. Type for laundry work. At a speedof from 1,000 to 2,000 revolutions perminute the water flies off by centrifu-gal force and the material is left near-ly dry. 28o MOTION AND DEVICES CONTROLLING MOTION. … ^^^^^^ 1145^. REA^ERSIXG PULLEY.—A conical disk fixed to theshaft; a pulley loose on the shaft with a clutch; a disk loose on the shaft, fixed as to motionby an arm, carries a set ofconical rollers, which arepushed into a bearing bythe shipper as shown in theright-hand figure for re-versing at…
