Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 390

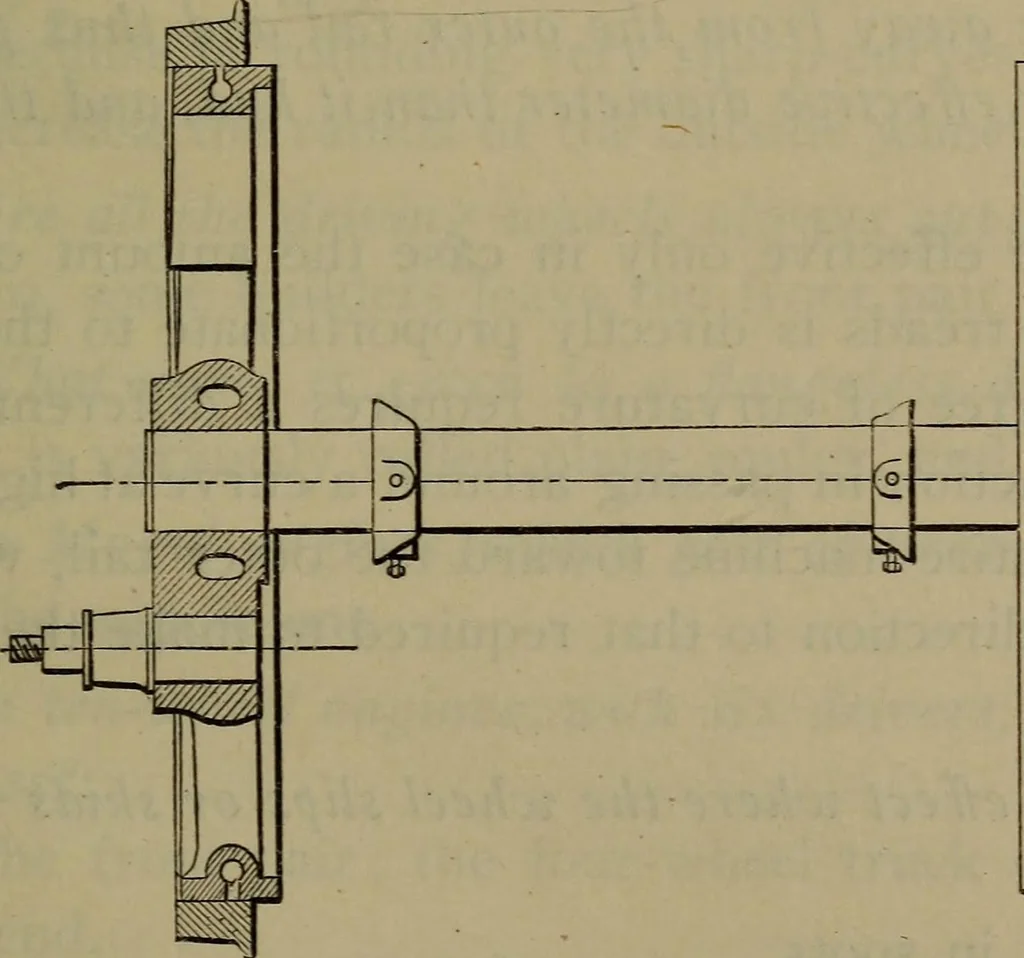

screw press., Q. What is to prevent the wheels turning on, instead ofwith their axles, by reason of there being two connectingrods acting at points po° apart, on two wheels, at opposite endsof the same axle? A. Square keys are driven in grooves or keyways in hubsand axles. Q. How should driving… … -QpB- Fig. 259. Wheel-centering to Permit Gage-narrowing. it is desired to narrow the gage the tire may be moved furtherin, and the projection thus left on the outside of the wheelcenter turned off. This is shown in Fig. 259. 384 LOCOMOTIVE CATECHISM. Q. What is flange friction? A. The friction of…
Locomotives
