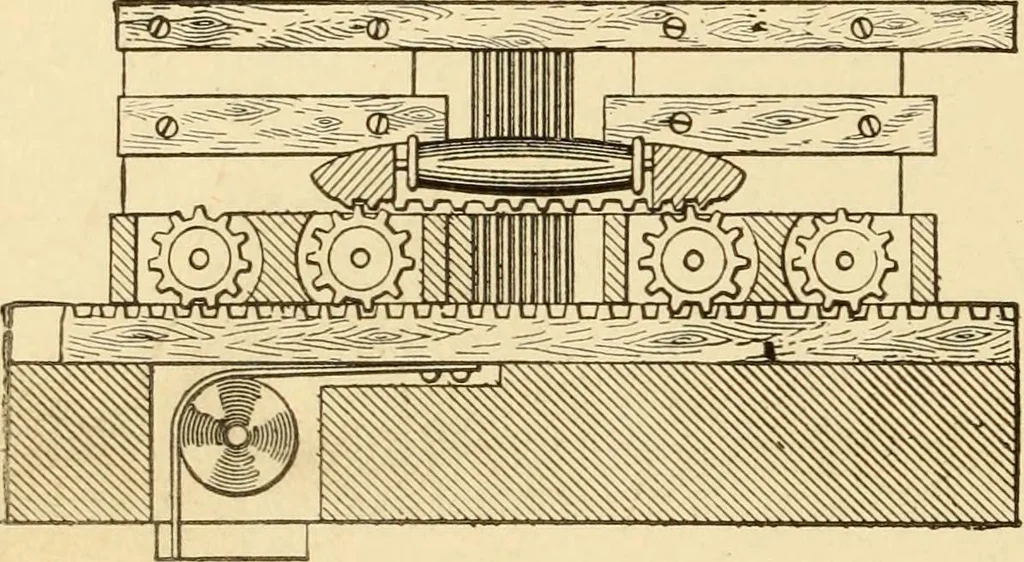

caught … 1145/. POSITIVESHUTTLE MOTIONfor a narrow fabricloom. The shuttle hasa narrow recessed rackgeared through a set ofpinions to the recipro-cating rack. ii45i^. A CURIOUS PADLOCK.—The key is like a corkscrew. The circular recess in front contains a rotating cylinder with a spiral key way^ and…
