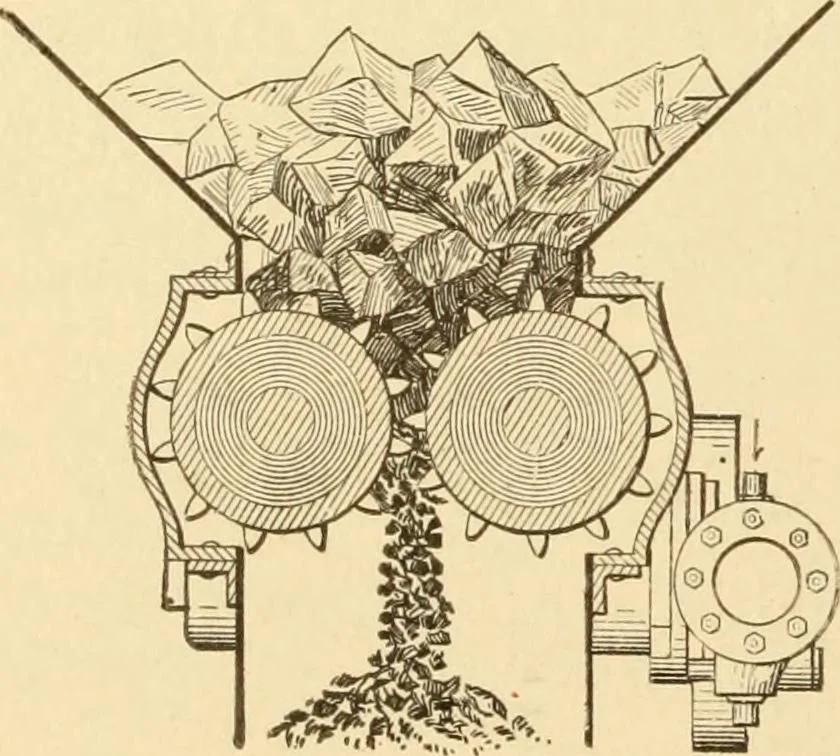

slide out. A chockat any point desired for dump-ing trips the holding-lever andreleases both side doors at once. TOGGLE JOINT, for a stone breaker. 1233. STONE CRUSHER. —Thepower is transmitted from tne drivingshaft by a cam operating a vertical con-necting link and toggle joint. Blake pattern.… … 1235. ROLLER COAL CRUSHER. —Driven by a direct-connected steamengine with screw gear. MINING. 305
