Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 313

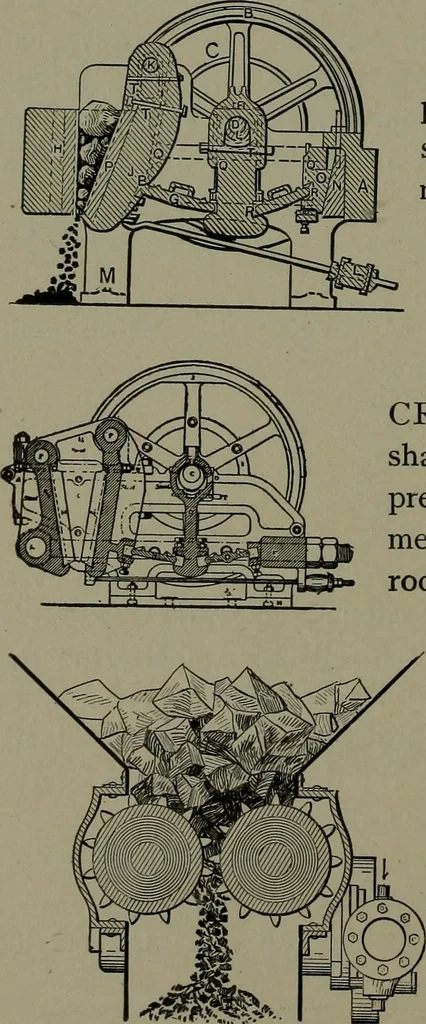

1232. TOGGLE JOINT, for a stone breaker. … 1233. STONE CRUSEER.-Thepower is transmitted from tne drivingshaft by a cam operating a vertical con-necting link and toggle jointo Blake pattern. 1234. BUCHANAN ROCKCRUSHER.—An eccentric on the drivingshaft and toggle arm gives a powerfulpressure to the crusher jaws. The adjust-ment is made by the…
Mechanical movements
