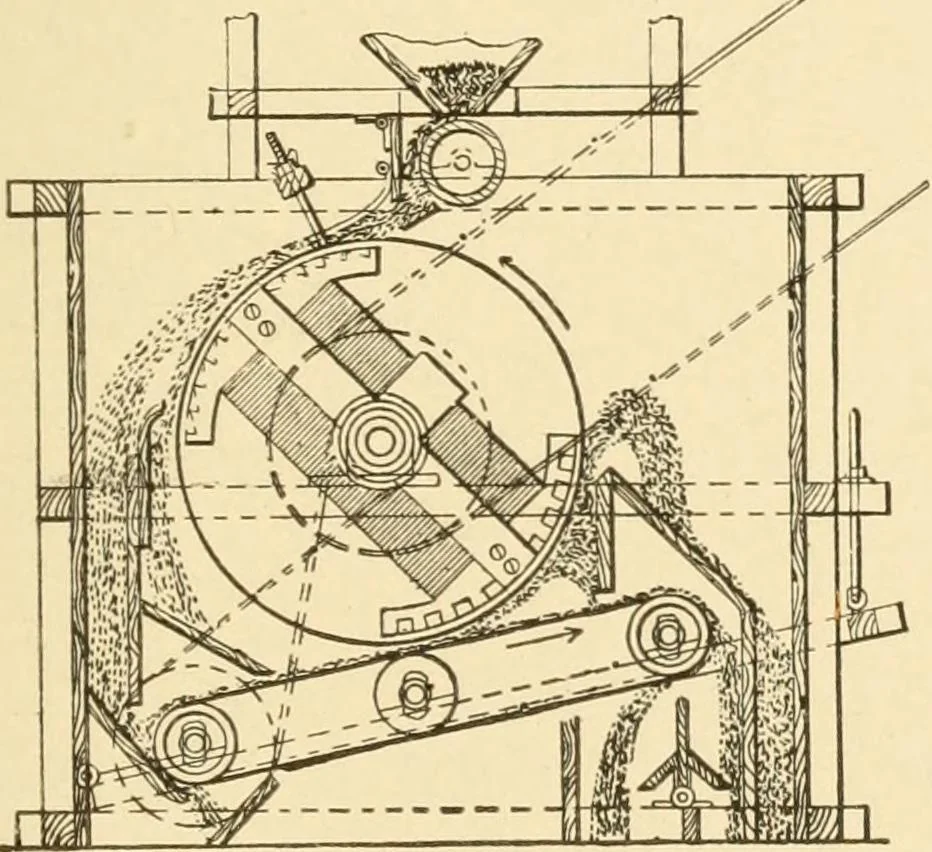

passing the chutes 1247 rt!. Front end view. 1247. MAGNETIC ORE SEP-ARATOR, Buchanan type. Twocylinders, magnetized by powerfulhorseshoe electro-magnets, are re-volved at considerable speed. Thepulverized ore is fed from hopperson top of the rolls ; the iron is held r — to the rolls and thrown off… … 1248. IRON ORE SEPARA-TOR, Buchanan model. Thepulverized ore is fed from a hop-per to a revolving drum, a sectionon each side of which is magne-tized by a fixed electro-magnet.The magnetic particles are carriedaround by the drum to a part ofthe neutral section and discharged.An apron below,…
