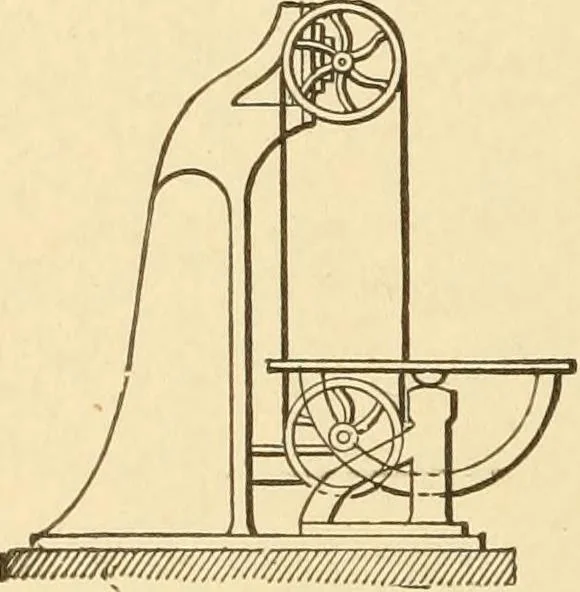

352. GIG SAW.—The spring a gives tension tothe saw running between guide frames, and operatesby crank and connecting rod. 1353. BAND SAW, for sawing metals.The frame and third wheel are set back to giveroom for large plates. … 1354. ^AND SAW.—Rectilinear motion ofsaw blade from rotary motion of band pulleys,with a tilting saw-table for bevel work.
