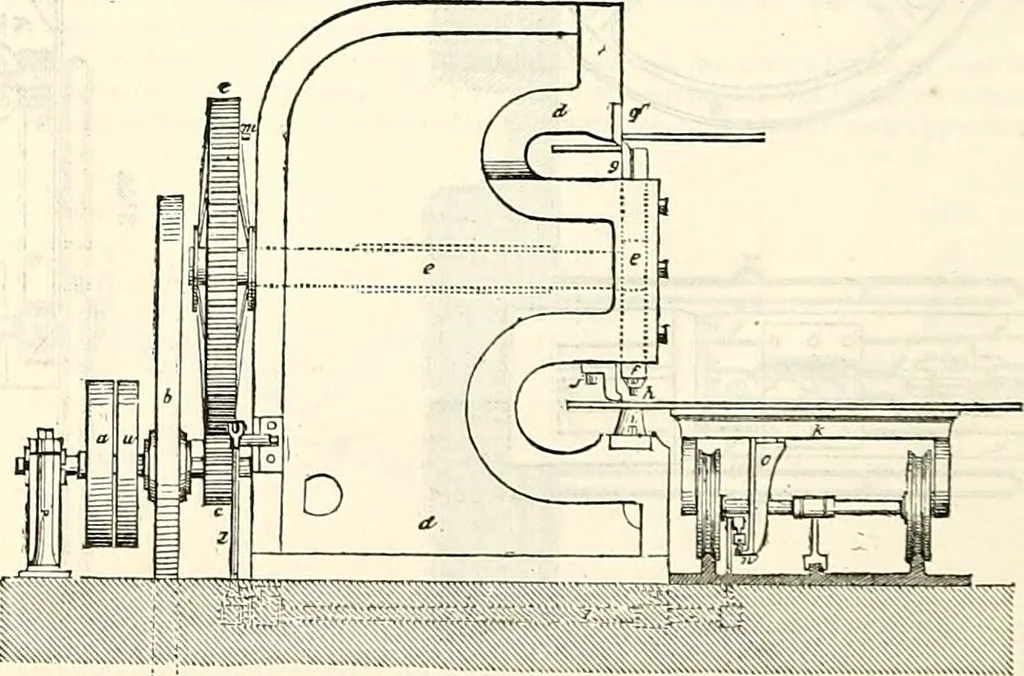

0, tiijht and loose riggers. h. fly-wheel. c, spur-wheel and pinion. literal References. I d, frame for carrying machinery.e, shaft and eccentric for raising and depressingsUde. … /, slide, the upper end having a steel cutter y, and the lower end the punches h.n, steel cutters.h, punches,i, die-frame. ;, stop for preventing the plate from rising.k, travellmg table for carrying plate to be punched. I, rods, levers, and spindle for advancing the trareUing table by means of…
