Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 359

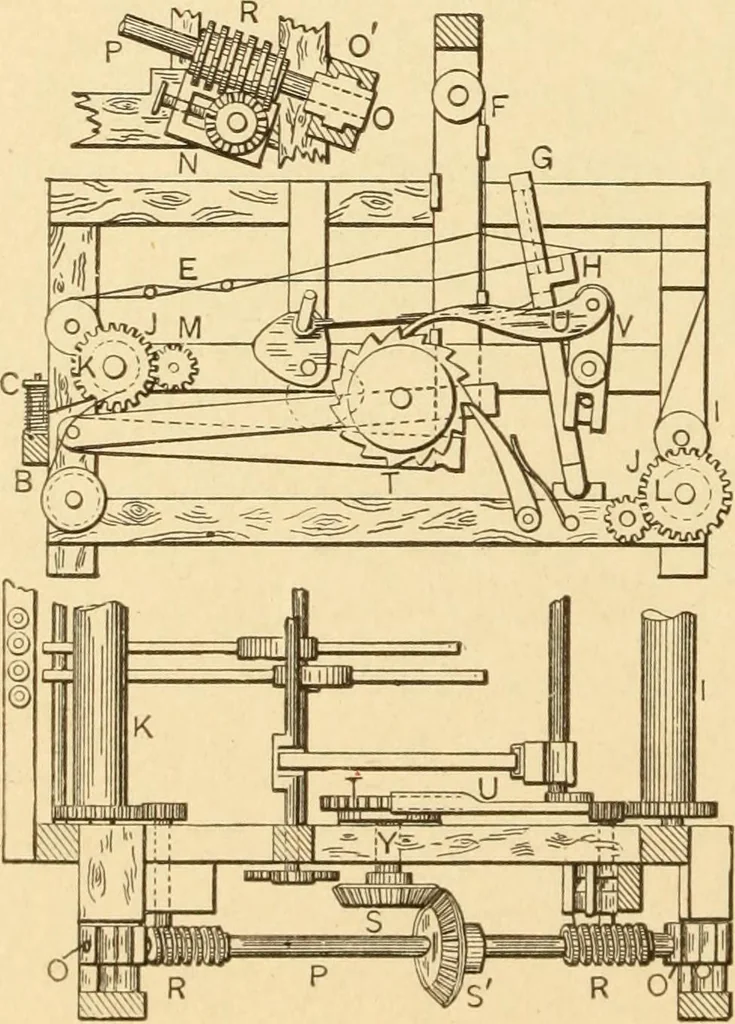

to whichHorizontal section and plan. 1443^. TAKE-UP AND LET-OFF AIOTION FOR LOOMS. —The detailed parts are:Take-up roller I, let-off rol-ler K, a pawl U pivoted tothe vibrating lever V operatedby the shuttleboard frameG, H, and moving the ratchetT, bevel gear S, S, shaft P,worm gear R, R, and… … Section XVL CONSTRUCTION AND DEVICES. Mixing, Testing, Stump and Pile Pulling, Tackle Hooks, Pile Driving,Dumping Cars, Stone Grips, Derricks, Conveyer, Timber Splic-ing, Roof and Bridge Trusses, Suspension Bridges. 1444. POST AUGER.—Often made with asingle turn to the blade. Used also for…
Mechanical movements
