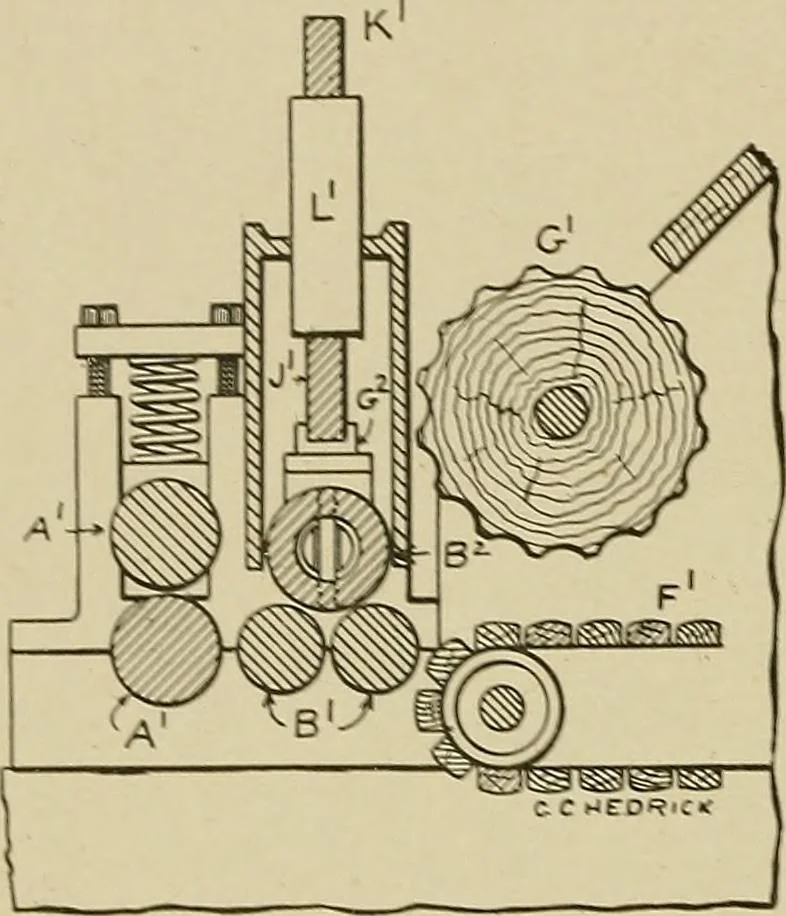

ne-is shown ar the right in Fig. 31.On the end of the beater shaft, and shown by dotted lines, is apulley, K, which drives the driun. F. Iw means of the belt, L, pulley,M, ami gears. N and O, the last being upon the end of the drumshaft. On the top apron roll is a gear. P, which drives a… … 78 COTTOX SPINNING. 43 and D^, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changein the speed of thee levating apron directly affects the speed of theevener and feed rolls. Fig. 32 is a section showing- the arrangement Of the…
