Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 361

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 361

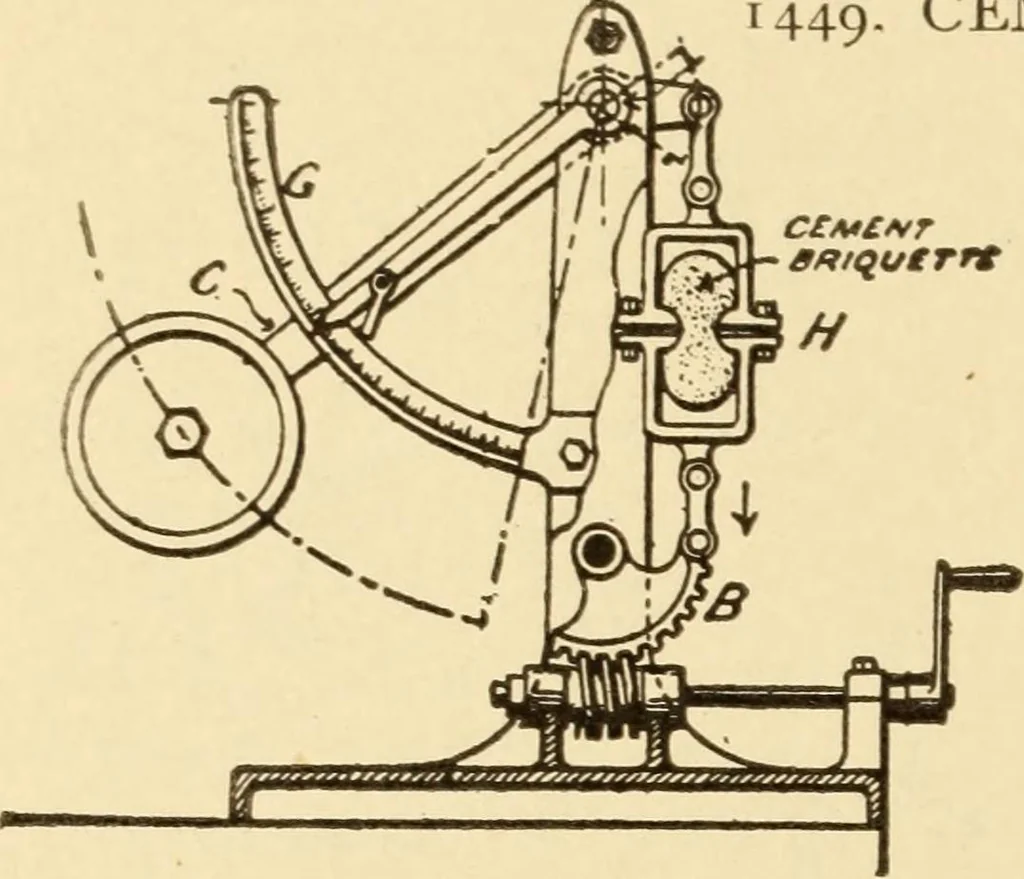

1445. PUG MILL, with spiral worm in a conicalshell, for mixing mortar, concrete, or other material 1446. CONICAL PUG MILL for mixing clays,mortar, concrete, and other material. 1447. CONICAL MIXING BARREL formortar, concrete, or other material. 1448. CONCRETE MIXER.—A rectan-gular box of iron… … CEMENT-TESTING MACHINE. —The cement sample is placedin the jaws at H. The sectorB is turned by the worm screwuntil the weight on the arm Cis raised to the limit of thebreaking strain, where the in-dex hand on the graduated arcis caught by the pawl, whenthe weight falls.
