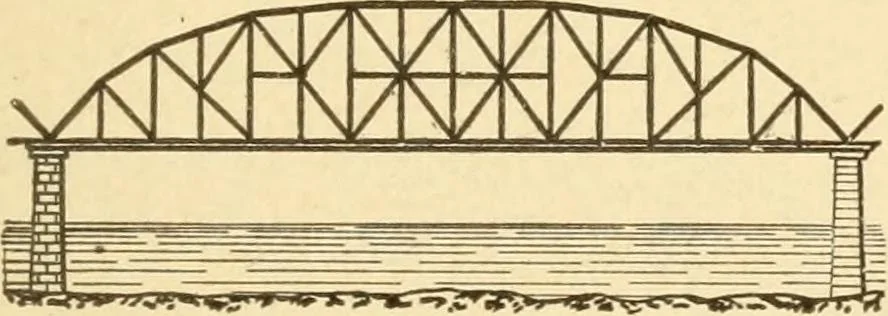

DECK BRIDGE TRUSSES. i486. Single strut deck truss for shortspans, 30 to 40 feet. 1487. Double strut deck trussfor 50 to 70 feet span. 1488. Multi-ple strut decktruss for 100feet span. 1489. BRIDGE TRUSS.-^Inclined strut and tie rod for eachpanel,with stiff compression upperchord. Vertical members…
