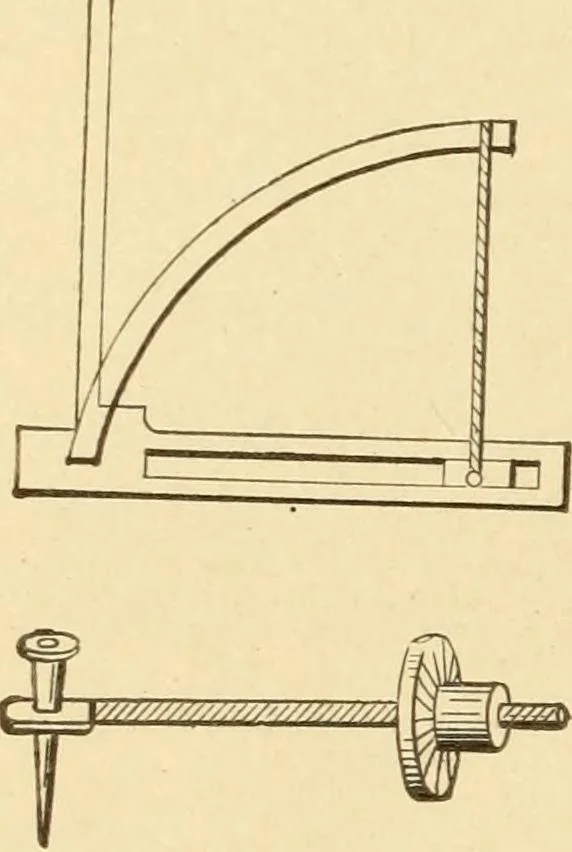

the spring to the bar, the screw will bend the spring to the desired curve. 1517. FLEXIBLE CURVE SCRIBER.—A spring of any suitable material may be fixedin a ruler and drawn by a string to the desiredcurve. There are many forms of this device,such as the string fastened to both ends of thespring and… … c KV\VV\Vi Q 1519. GREAT CURVE DELINEA-TOR. — Thin-edged ^^ ^^^^^ ^^ different di-ameters are attachedto a bar or tube at adistance apart,so thattheir relative diam-ters and distance will correspond to the required radius, which maybe computed by the difference in diameter multiplied by the…
