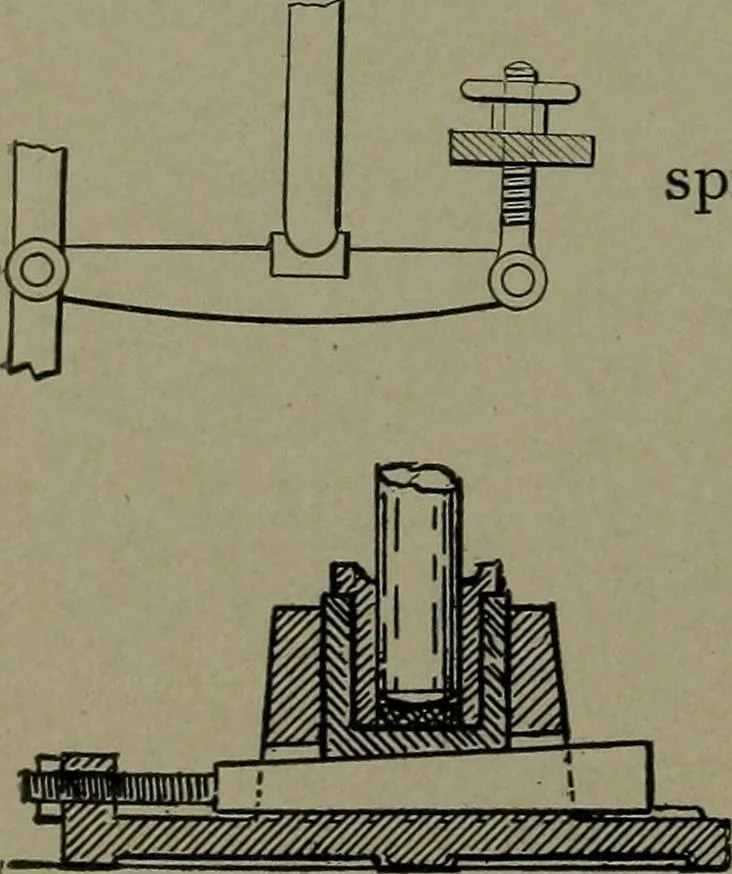

1277. CONICAL PIVOT BEARING and adjust-ing screw. 1278. LUBRICATION OF A HANGINGBEARING by hydraulic pressure. Oil isforced into the grooves of the bearing throughthe small holes and discharges into the cuparound the outside. 1279. VERTICAL SHAFT STEP.—Madeadjustable by a movable bearing held by… … 1280. SHAFT STEP ADJUSTMENT forspindles of millstones. 1281. ADJUSTABLE STEP BEARING,with hard bronze bush and step. A mor-tise through the iron base and a key drawnwith a screw extension and nut are for verti-cal adjustment.
