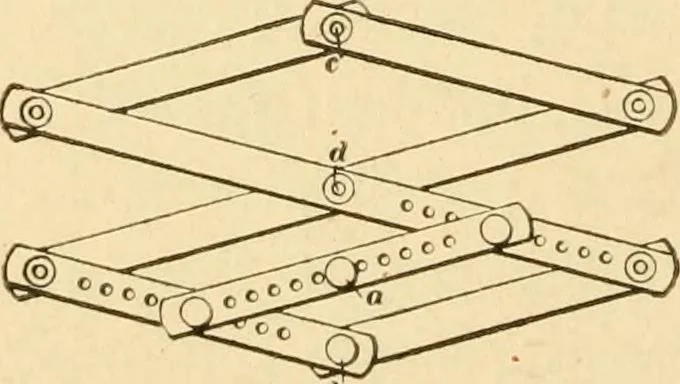

1528. PANTOGRAPH.-For perfect pro-portions the points A, B, C must always be inline. With the point B fixed, the pencil at Awill produce an exact copy of tracing frompoint C. By changing places for the fixedpoint a double or half-size tracing may be made. 1529. LAZY-TONGS PANTOGRAPH, for reducing… … DRAUGHTING DEVICES. 367
