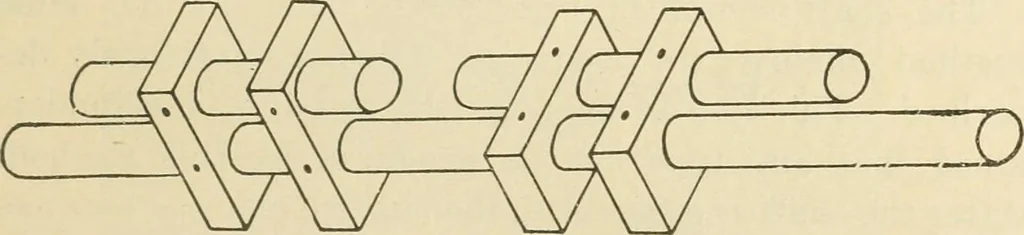

ade up from pieces of cold rolled steel stock.The square pieces are first cut to shape and finished up.Assuming that the shaft and crank pins are I/4 in. indiameter, i/4-in. holes are drilled in the flat pieces. Theseholes are then reamed out to exact size. It vnll be neces-sary to obtain a steel… … Fig. 220—Method of making a double-throw, built-up crankshaft The drill rod is then forced through the V^-ui. holes inthe square pieces and this can be done by placing thesquare pieces in the vise and giving the rod several hardblows A\ith a hammer. The piece for the crank pin isdriven in place in…
