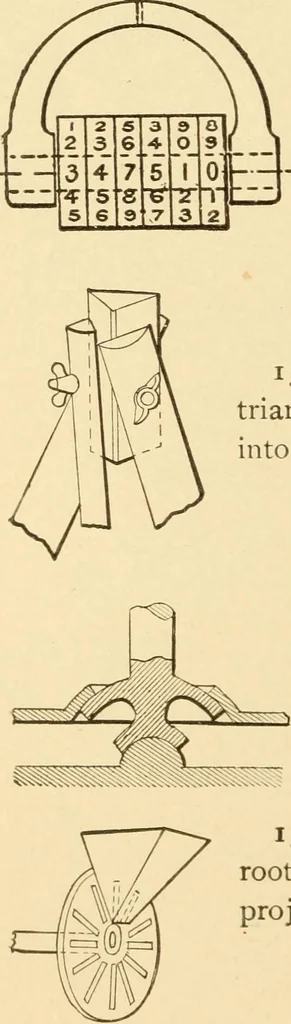

1 k 1544. DOOR PUSH CHECK.—The spring closes the door. The piston in the cylinder has a valve to allow quick inlet of air when opening a door, and a small hole adjustable at the bottom of the cylinder for slowly discharging the air. 1545. FOLDING LADDER.—The rounds arepivoted to the side pieces,… … 1546. SIMPLE COMBINATION LOCK. —A number of discs arranged on a spindlehaving a feather key. The discs are notchedto match the notches in the key so that theyreadily turn to be set to the register number torelease the spindle. 1547. TRIPOD.—The legs are pivoted on atriangular prism, which allows…
