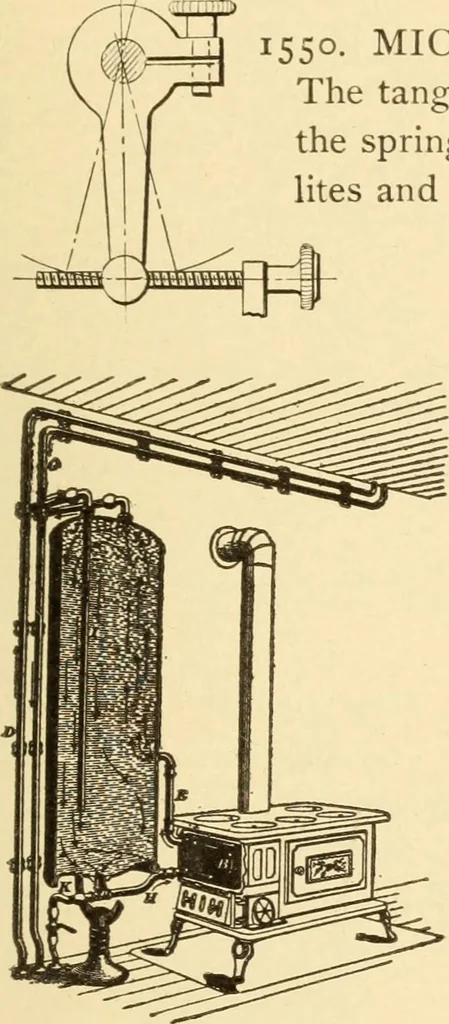

atch the notches in the key so that theyreadily turn to be set to the register number torelease the spindle. 1547. TRIPOD.—The legs are pivoted on atriangular prism, which allows the legs to be foldedinto a cylindrical staff. 1548. DOUBLE SPHERICAL SOCKET,used mostly on surveying instruments.… … 1550. MICROMETER SCREW ADJUSTMENT.— The tangent arm is made fast or loose on the shaft bythe spring dip and screw. Used mostly on theodo-lites and transit instruments. 1551. CORRECT PRINCIPLE in setting a hot-water house boiler. H, E, circulating pipes. B, water-back or coil. K, draw-off. D,…
