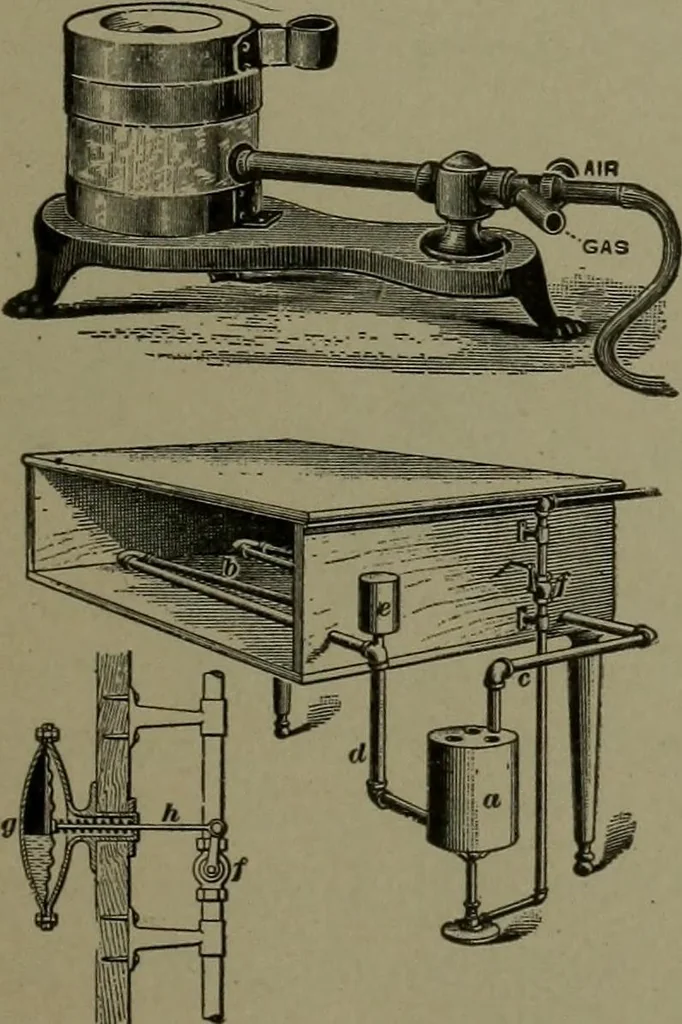

nd air through the tube tothe furnace. 1627. GAS-HEATED INCUBATOR. -n A hot-water tank heated by a smallBunsen burner or lamp. ^, c, d, Circulat-ing pipes; /, regulating cock; e, ex-pansion cup. 1628. Thermostat regulator. ^, Ther-mostat, consisting of a corrugated metaldiaphragm between two cupped… … 392 MISCELLANEOUS DEVICES. 1629. ACETYLENE GAS GENERATOR, Troubetzkoy»model. Has a water flow governed by the rise in the holder. J, Bal-anced gas holder; G,water seal tank; B, B,generators, two or four;A, small water tank; <?,pipe to convey water togenerators; b^ govern-ing valve, operated…
