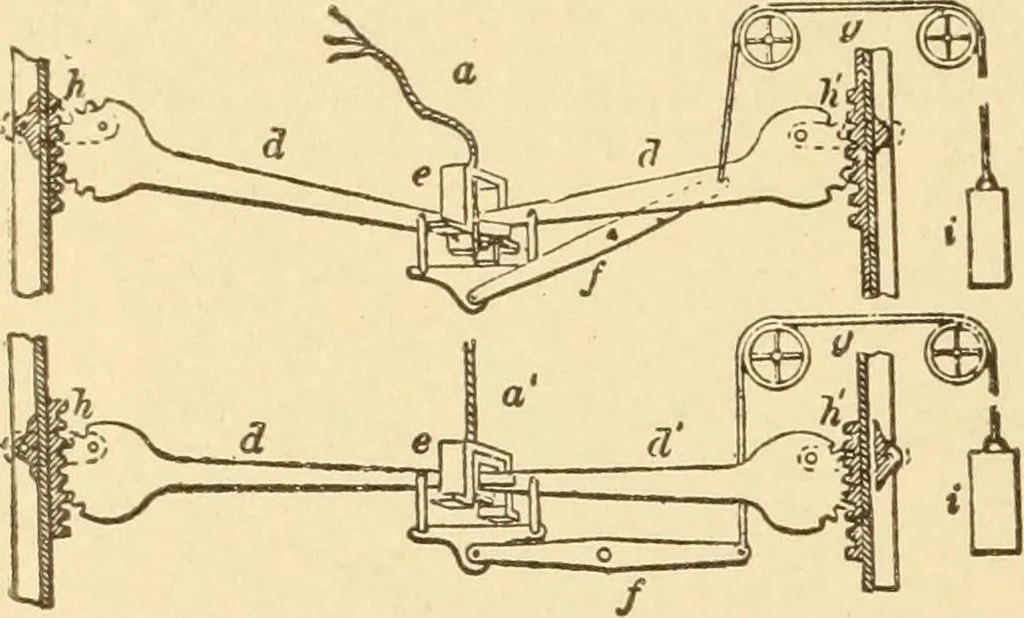

378 MISCELLANEOUS DEVICES. 1563. SAFETY CATCH FOR ELEVATORS.—The eccentricsector levers are connected at their pivots to friction sUdes behind the guide rails by links. Thefront slides are ratchet bars onthe face of the guide rails.The balance weight intensifiesthe action of the grips whenthe rope…
