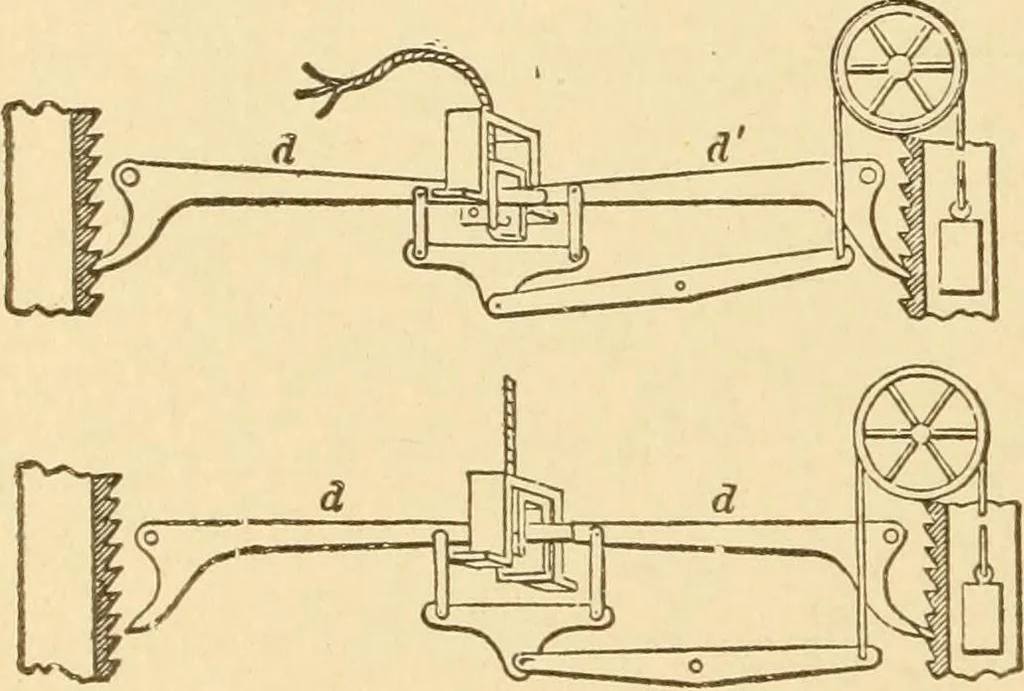

AR. —When the cage is lifted the pivoted armpulls the pawl clear of che rack. A break-age of the rope lets go the pawl arm, andthe spring throws the pawl into the rack. ^ 1566. SAFETY CATCH FOR ELEVATORS.—A lever pawlpivoted to each side of the elevator cage is kept clear from the rack guides by…
