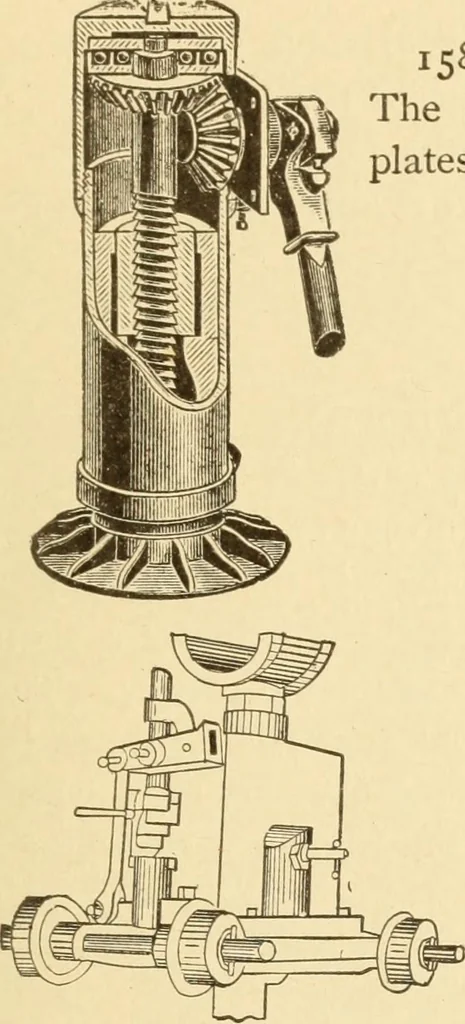

1585. RACK AND PAWL wheel lifting-jackLower pawl is operated by a lever or crank. MISCELLANEOUS DEVICES. 3^3 … 1586. BALL-BEARING SCREW JACK.—The balls run in grooves between the bearingplates. 1587. HYDRAULIC TRANSFERJACK.—For lifting cars or transferringover temporary rails. The extension ofthe truck axles allows for adjustment toany gauge railroad. L^^
