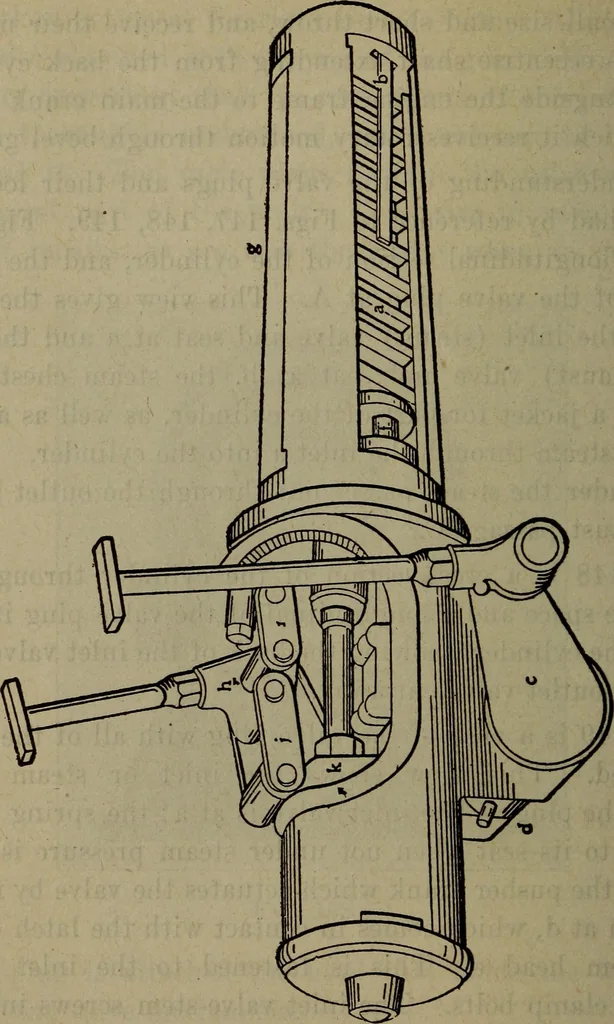

cam at d, which comes in contact with the latch of thevalve-stem head e. This is fastened to the inlet valve-stem by clamp bolts. The inlet valve-stem screws into thenut f, so that by loosening the clamp bolts of the head eand turning the rod, an adjustment of the valve settingcan be made, as will… … Fig. 149 which is connected to the governor-rods. When releasedby the trip cam^ the valve cuts off by means of the steampressure on the valve-stem controlled by a dash-pot ar-rangement in the valve-plug head to which the other endof the rod is attached. Valves and Valve Setting 415 The outlet valve…
