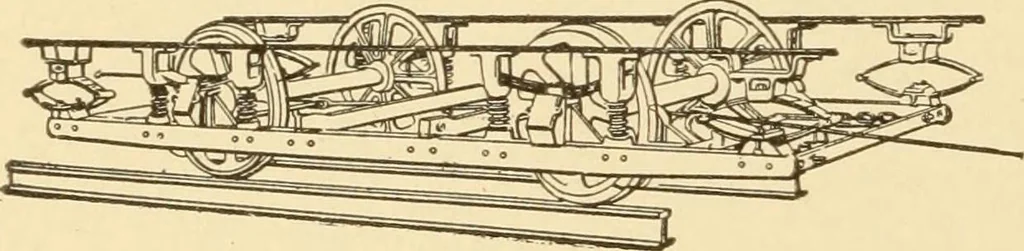

1591. FRICTION BRAKE forstreet-railway cars. A leather washerbetween the flange of the brake spooland axle flange is the friction sur-face. The spool is held by a shortwind of the chain either way. Thediagonally cut sleeve is elongated bya pull on the connecting rods, whichcompresses the friction… … 1592. CAR TRUCKfor street railways. Sub-frame and compoundsystem of springs.
