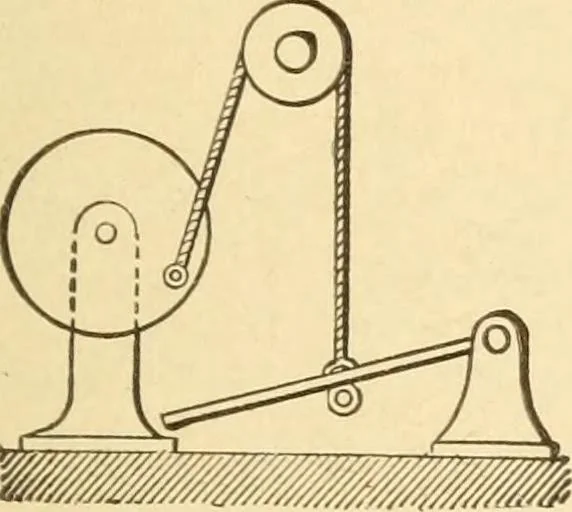

49. ALTERNATING CIRCULAR MOTIONfrom the curvilinear motion of a treadle. Theancient lathe motion. 50. CIRCULAR MOTION from curvilin-ear motion of a treadle through a cord andpulley.
