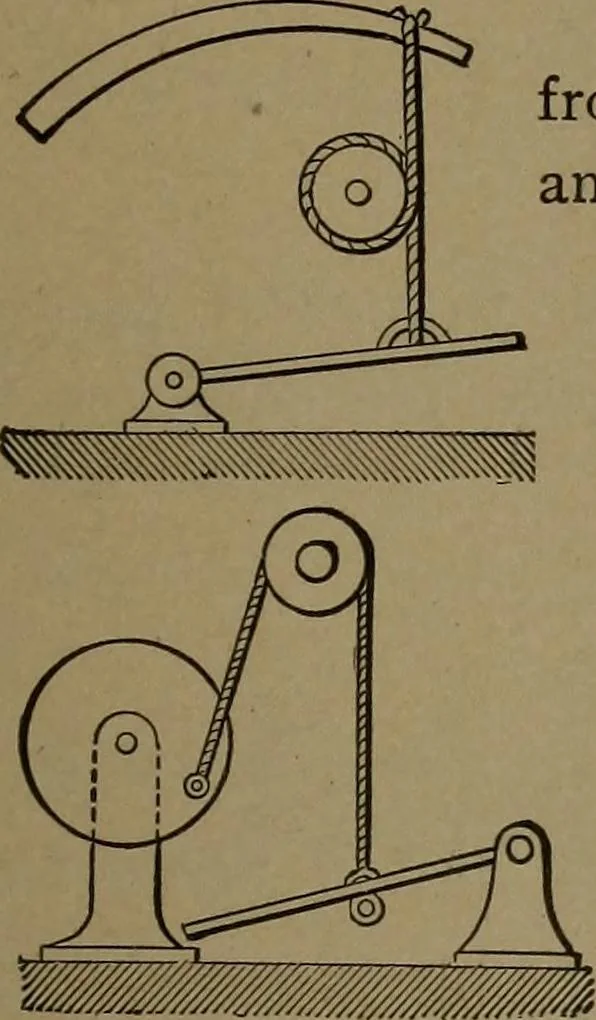

ved tangentially by in-ertia. 48/. THE INCLINED PLANEin a marine governor. Thesprocket wheel A and inclined hubare fast on the shaft. The inertiawheel and its inclined hub are freeon the shaft with its hub facepressed against the driving wheelhub by the coiled spring. Irregu-larity in the speed of… … 49. ALTERNATING CIRCULAR MOTIONfrom the curvilinear motion of a treadle. Theancient lathe motion. 50. CIRCULAR MOTION from curvilin-ear motion of a treadle through a cord andpulley.
