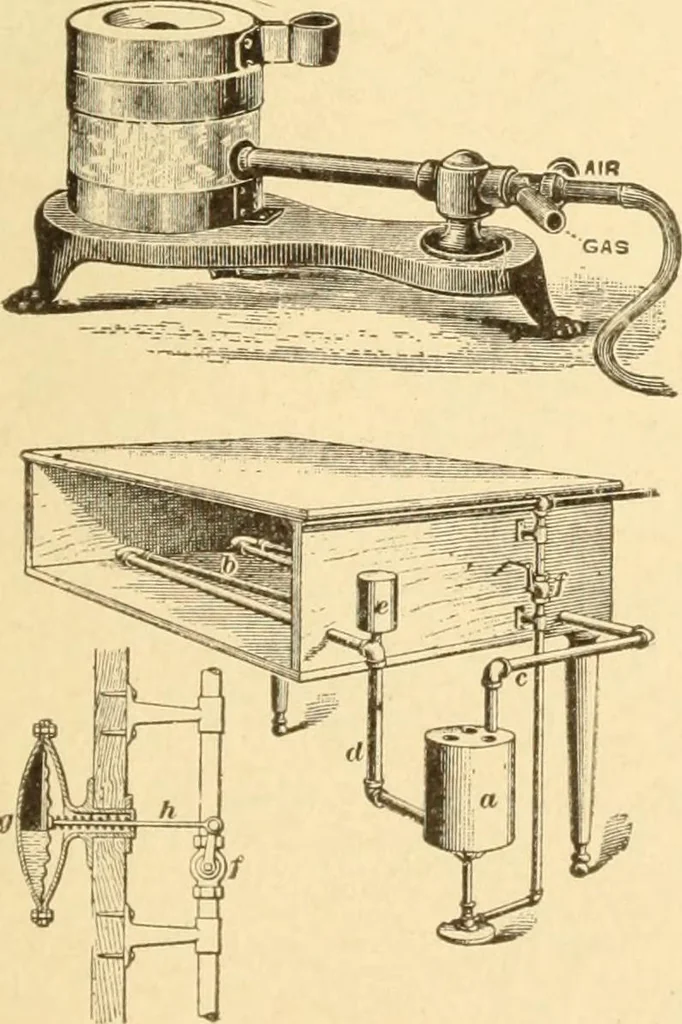

nd air through the tube tothe furnace. 1627. GAS-HEATED INCUBATOR. ^ A hot-water tank heated by a smallBunsen burner or lamp. /, r, d^ Circulat-ing pipes; /, regulating cock; c, ex-pansion cup. 1628. Thermostat regulator, ^-j Ther-mostat, consisting of a corrugated metaldiaphragm between two cupped… … 392 MISCELLANEOUS DEVICES. 1629. ACETYLENE GAS GENERATOR, Troubetzkoymodel. Has a water flow governed by the rise in the holder. J, Bal-anced gas holder; G, water seal tank; B, B^generators, two or four;A, small water tank ; <-?,pipe to convey water togenerators; b^ govern-ing valve, operated…
